Quotation for a "GTA / FRP"
crushing unit for old windows

The crushing unit for old windows comprises of the glass separation unit GTA and the window frame press FRP.

Description of function:

  • The unit comprises a stable, chain-driven conveying element and special cam bars to transport the wings of the windows through a breaking device. The performance of the breaking device of the GTA can be switched over for compound glass.

  • Removal of the glass from the window is done within a breaking device housing. The energy of the patented breaking device can be switched over for simple glass or compound glass.

  • The broken glass falls into a container or optionally onto a conveyor belt.

  • Windows without glass - with slight fragments of glass remaining in the groove - are transported in the further process via the discharge of the GTA to the FRP, where they are pressed to form "frame laths" (squared timbers) on the long sides. These are then removed and can be piled up in a container to save space (up to 75% space saving).

  • Our FRZ special shredder makes it possible to further process the frame laths from the FRP directly. This way, the various individual modules, GTA, FRP and FRZ can be operated by only one person (one-man operation).

  • Our units are supplied with RAL 5012 paint, the breaking device elements and the electrical control units with RAL 9002, the transport elements (special cams) are galvanised and the sheets used (hopper, feed) are of high-quality fine steel.

Technical data:

Motor performance:

GTA/FRP

400 V, 16 A, 5,1 kW

Weights:

GTA

2.750 kg


FRP

1.700 kg

Performance features GTA/FRP

The window glass can be simple glass or compound glass.
Windows containing safety glass cannot be processed.

The GTA/FRP unit is designed for wooden windows. However, PVC and aluminium windows can also be de-glassed.

The following window or wing dimensions can be processed in the GTA/FRP:

Windows of a size up to a maximum of 2200 mm x 1750 mm (length x breadth) and a height, with hardware on one side, of up to a maximum of 150 mm (including hardware), with hardware on both sides up to a maximum of 180 mm. At the input to the GSU, hardware protruding downwards may only be a maximum of 90 mm in height. Hardware should be removed beforehand if possible.

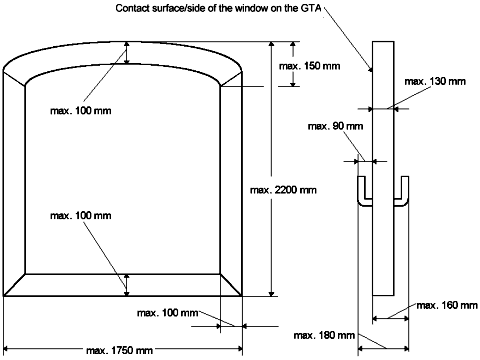

The individual squared timbers on the window can be up to a maximum of 100 mm wide and 130 mm thick. Timbers which are not straight (arched) must not exceed a maximum radius height of 150 mm (see illustration below).

Ill.: Dimensions for sizes of windows

Frame dividers within the window frame can have a maximum thickness of up to 25 x 25 mm. Larger frame dividers must be removed beforehand.

Wings inside window frames must also be removed beforehand. The above mentioned window dimensions are also valid for the dimensions of window wings.

The performance of the GTA/FRP in automatic operation and in the standard factory settings is:

  • Transport speed of the GTA: 4.0 m/min.

  • The unit is designed for single-shift operation, with an average throughput of about 300 - 500 windows per day in automatic operation with standard factory settings and corresponding logistics of the operator resulting, depending upon the size of the windows (in single-shift operation).

Preis der Anlage:

Item

Pcs.

Designation

1

1

Glass separation unit (GTA)
and window frame press (FRP)

2

1

Reinforced cam bars in the GTA

3

1

Hinged container for glass underneath the GTA for fork-lift truck operation, optionally discharge belt

4

1

Package of spare parts



Price of the unit without transport, assembly
and instruction plus VAT:





price on application

Terms of payment: Payment net within 30 days.

1/3 upon order confirmation against down-payment invoice
1/3 before delivery
1/3 upon delivery and start-up phase

Delivery date:

6-8 weeks after written order and technical clarification.

(For unloading you require a crane for 3,5 to. If the unit is to be erected indoors, please ensure that the door height is at least 4 m.
A further precondition is that the machine can be erected on a level floor with corresponding bearing capacity.)

Delivery is exclusively in accordance with our General Terms of Business and Delivery.

We hope that this quotation appeals to you and would be pleased to receive your order. We are readily at your disposal in the event of further questions.
